Kaydon 16369001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16369001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16369001 reference belongs to the Tr Series and uses a three-row roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16369001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16369001.
- Overall OD (Do)
- 97.795 in
- Overall ID (di)
- 76.850 in
- Overall height
- 7.126 in
- Gear arrangement
- External gear
- Mounting holes
- 40 / 40 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 97.795 inapproximately 2,483.99 mm
- Overall inside diameter (di)
- 76.850 inapproximately 1,952 mm
- Outer ring inner diameter (Di)
- 86.614 inapproximately 2,200 mm
- Inner ring outer diameter (do)
- 87.047 inapproximately 2,210.99 mm
- Overall height (H)
- 7.126 inapproximately 181 mm
- Assembly weight (G)
- 4400 lbapproximately 1,995.806 kg
Mounting
- Outer ring bolt circle (Lo)
- 91.535 inapproximately 2,324.99 mm
- Inner ring bolt circle (Li)
- 79.921 inapproximately 2,029.99 mm
Gear
- Gear pitch diameter (D2)
- 96.378 inapproximately 2,448 mm
- Gear tooth count (z2)
- 136
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16369001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16369001 |
| Certified interchangeable with | Kaydon 16369001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16369001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 97.795 inapproximately 2,483.99 mm |
| Overall inside diameter (di) | 76.850 inapproximately 1,952 mm |
| Overall height (H) | 7.126 inapproximately 181 mm |
| Outer ring inner diameter (Di) | 86.614 inapproximately 2,200 mm |
| Inner ring outer diameter (do) | 87.047 inapproximately 2,210.99 mm |
| Outer ring bolt circle (Lo) | 91.535 inapproximately 2,324.99 mm |
| Inner ring bolt circle (Li) | 79.921 inapproximately 2,029.99 mm |
| Gear pitch diameter (D2) | 96.378 inapproximately 2,448 mm |
| Assembly weight (G) | 4400 lbapproximately 1,995.806 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 70630 lbfapproximately 314.18 kN |
| Moment load rating (Crm) | 4129500 ft·lbfapproximately 5,598.85 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 40 holes · 1.535 |
| Inner ring bolt holes (ni) | 40 holes · 1.535 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 18 (source (18)) |
| Number of teeth (z2) | 136 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
SERIES LOAD CAPACITY

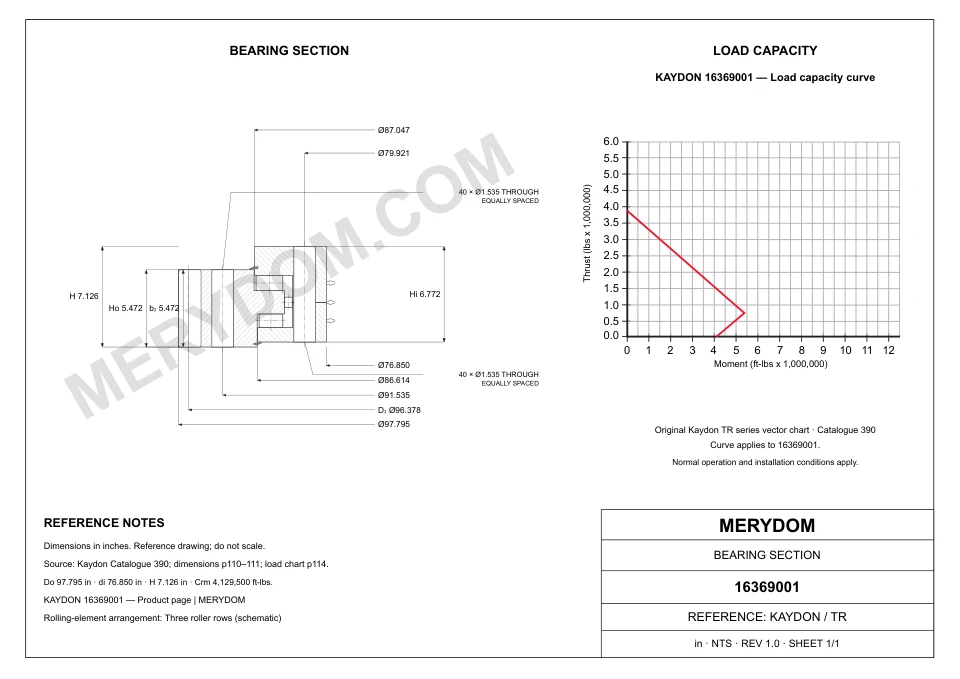

Tr Series load chart
